Intuitive touch screen operation.
Hot runner system eliminates runner and improve productivity.
Separate 7 liter melting tank(s). Multiple meltingtank is optional.
LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.
Linear scale
The gear pump is made of hard-wearing material，which is stable，injection volume accuracy ±0.1g，maximum shot size is 5.8g/s.
Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
Light curtain and dual palm buttons for operator safety.
Ejection system.
Application
LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.
Hot runner system eliminates runners and higher output per cycle. It is designed for high volume production.
Specification
Machine Size / Weight | 960 mm x 770 mm x 1720 mm / 320 kg 37.80 in x 30.32 in x 67.72 in / 705 lbs |
Footprint | 960mm x 1700 mm | 37.80in x 66.93 in |
Working Station Height | 840 mm | 33.07 in |
Packing Size / Weight | 1010 mm x 870 mm x 1730 mm / 360kg 39.76 in x 34.25 in x 68.11 in / 794 lbs |
Melting Tank[1] | Melt on demand 7 liter x 1 |
Auto Feeding System | Optional |
Gun Model & Tip | Hot Runner System |
Each Station Gun Tip Q'ty | Std.4，depends on part design |
Heated Hose [2] | 1.6 m x 1 |
Electricity[3] | 200-240VAC/1 Phase/ 50 Hz |
Temperature Control Zones | 5 or according to the part |
Temperature Range | Ambient up to 250°C / 485°F |
Max .Power | 6Kw / 7.5kw according to the part |
Min. Air Pressure | 0.5MPa | 73 Psi |
Air Consumption | 0.1 m3/min | 3.5 ft3/min |
Clamping | Air Cylinder |
Clamping Force | Max.1.2 Ton |
Clamping Stroke | 150 mm | 5.90 in |
Control System | 7 ”HMI , PLC controlled |
Safety Protection | Light Curtain, emergency stop button |
Mold Set Size | 250 mm x 150 mm x 308mm / 75 kg 9.84 in x 5.91 in x12.13 in / 165 lbs |
Max . Mold Set Size | 300 mm x 200 mm x 308 mm 11.81 in x7.87 in x12.13 in |
Max . Part Size | 60 mm x 50 mm x 18 mm 2.36 in x1.97 in x 0.71 in |

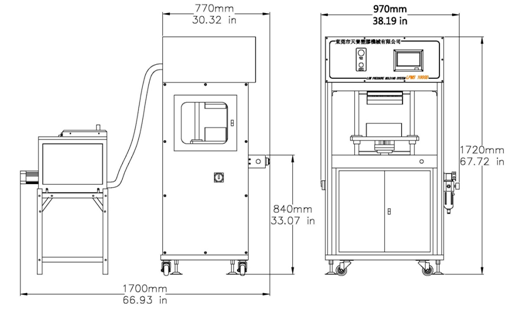

Dimension
Video
