DELTA 2000H

Hot Runner Dual Working Stations with Separate Tank

Intuitive touch screen operation.
Hot runner system eliminates runner and improve productivity.
Separate 7 liter melting tank(s). Multiple meltingtank is optional.
LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.
Linear scale
The gear pump is made of hard-wearing material，which is stable，injection volume accuracy ±0.1g，maximum shot size is 5.8g/s.
Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
Light curtain and dual palm buttons for operator safety.
Ejection system.

Application

　 LPMS^? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

Hot runner system eliminates runners and higher output per cycle. It is designed for high volume production.

Specification

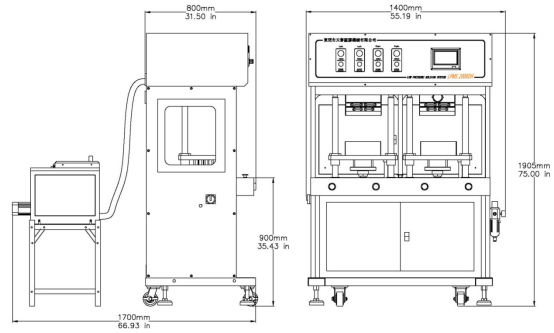

Machine Size / Weight	1400 mm x800 mm x 1920 mm / 600 kg 55.12 in x 31.50 in x 75.59 in / 1323 lbs
Footprint	1400 mm x 1700mm \| 55.12 in x 66.93 in
Working Station Height	905 mm \| 35.63 mm
Packing Size / Weight	1470 mm x 960 mm x 2140 mm / 640 kg 57.87 in x 37.80 in x 84.25 in / 1411 lbs
Melting Tank	Melt on demand 7 liter x 1
Auto Feeding System	Optional
Gun Model & Tip	Hot Runner System
Heated Hose	1.6 m x 2
Electricity	200-240VAC / 1 Phase / 50 Hz
Temperature Control Zones	11 or 15，depends on part design
Each Station Gun Tip Q'ty	2 or 4 , depends on part design
Temperature Range	Ambient up to 250°C / 485°F
Max .Power	9.5 Kw
Min. Air Pressure	0.5 MPa \| 73 Psi
Air Consumption	0.18 m³ / min \| 6.3ft³ / min
Clamping	Air Over Oil Cylinder
Clamping Force	Max.5 Tons ( Option 10 Tons )
Clamping Stroke	150 mm \| 5.9 in
Control System	7 ”HMI , PLC controlled
Safety Protection	Light Curtain , emergency stop button
Mold Set Size	250 mm x 150 mm x 308mm / 75 kg 9.84 in x 5.91 in x12.13 in / 165 lbs
Max . Mold Set Size	300 mm x 200 mm x 308 mm 11.81 in x7.87 in x12.13 in
Max . Part Size	100 mm x 90 mm x 18 mm 3.94 in x 3.54 in x 0.71 in
